Universal Pallet Forks for Compact Tractors with Quick Attach

The Redline Systems Inc. Universal Pallet Forks for compact tractors with ssqa were designed specifically for use and capacity of compact tractors. Being these tractors have such limited lift capacity everything you put in front of it has to kept light yet durable enough to handle the abuse these tractors can take.

Summary

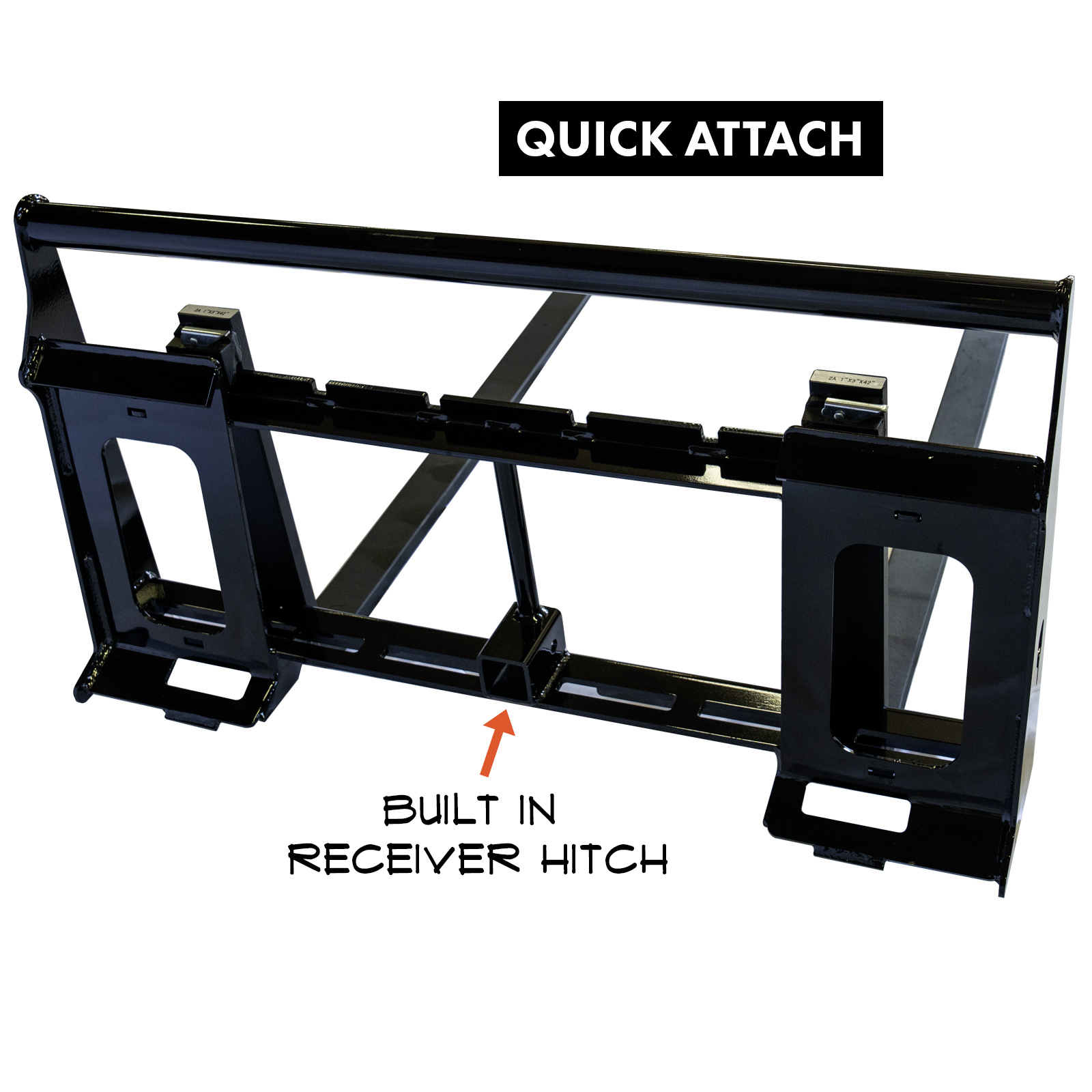

The carriage is constructed of all 1/4″ A36 steel plate. The mounts are also 1/4″ plate and are tied in with a torque tube at the top of the carriage to help minimize the twisting effect inherent with the center rollback cylinder design. There is also tie off point cut into the side rail of the carriage to help hold something on the forks or assist in tying the tractor down on a trailer. And an 8″ tall back stop integrated into the carriage.

About the forks
Choose from 36″ or 42″ forks. Heavy duty 3/8″ forks rails that won’t bend. They are built to be durable and lightweight to handle the lift capacity of the compact tractors, which ever one you may have. They are a center load design so they can’t fall off the end of the rail and are adjustable in width along the rail.

Why are these better than clip on forks?
These are a much better option for people that want to use their tractor for moving palletized material around or picking up logs. The clip on bucket forks work for some people but eventually end up bending and distorting the factory dirt bucket and the lift capacity is very minimal due to where the bulk of the weight is positioned in front of the bucket. This pallet fork attachment for compact tractors has been to designed to maximize the lift capacity the tractor has and will keep the weight as close to the loader pivot points as possible for maximum lifting force.

This is a must have attachment for the compact tractor user and will end up on the tractor more than any other attachment in most cases.

Pallet Forks Specifications:

• • Mounting Type: Quick Attach (SSQA)
  • Fork Length: 36″ or 42″
  • Carriage Width: 45″
  • Height: 24″
  • Depth: 9″ without forks

• Weight: SSQA 36″ forks and carriage 177 lbs, SSQA 42″ forks and carriage 223 lbs
• Frame Material: Frame made from 1/4″ A36 plate
• Fork Dimensions: 1.125″ x 3″ x 36″ or 42″
• Fork Width: Adjustable
• Lightweight design maximizing lift capacity
• Rated for up to 2200 lift capacity (depending on model of loader)
• Integrated tie off point inside rail
• Color: Powder coated black finish
• Always Made in the USA

Compatible Models (call to verify):

• Compact tractors under 40 HP
• SSQA (quick attach) mounting

Occasionally, this product may be called:

Sub-compact Tractor Pallet Forks, Pallet Forks Attachment for subcompact tractors, Compact Tractor attachments, Compact Utility Tractor Pallet Forks, Utility Tractor Pallet Forks or Pallet Forks Attachment.
