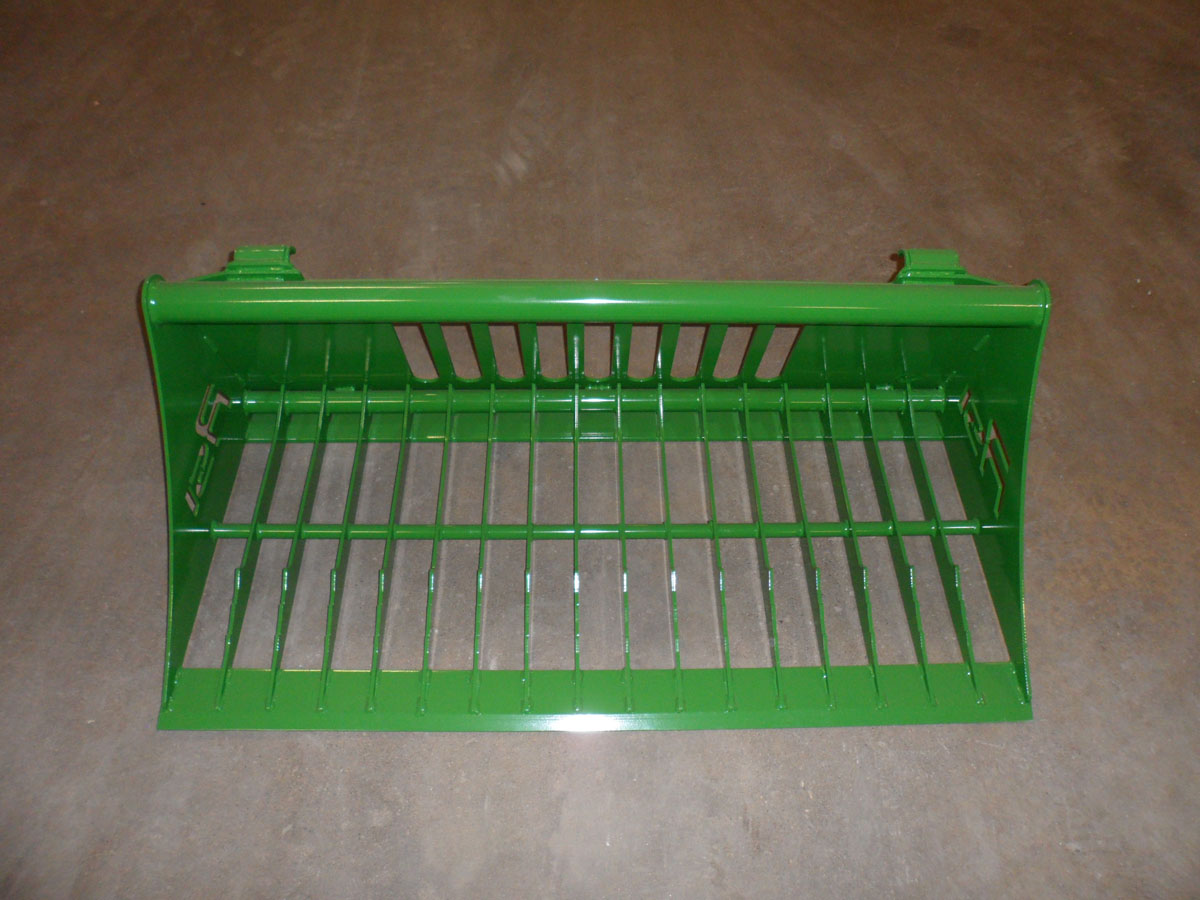

The Redline Systems Inc. 54″ John Deere Compact Tractor Rock Bucket and Land Plane Attachment is for those that like the features of the rock bucket but also need the ability to level ground after they get your rock and debris picked up. It is built virtually the same as our standard John Deere Compact Tractor Rock Bucket with the addition of another cutting edge mounted into the rear of the bucket. This gives the user additional functions that you won’t see on any other rock buckets. This bucket is built using 1/4″ A36 steel plate. The cutting edges are 1/2″ x 4″ 1055 single bevel carbon steel which are the same edges used on the larger skid loader equipment. This bucket is designed specifically to fit and work with the John Deere subcompact and compact tractor line. It’s designed to be lightweight yet durable enough to handle the abuse these tractors can put on an attachment. The solid back plate has long slots cut into it to help filter loose material from the bucket while retaining the debris the user is trying to grab. The tines are spaced 3″ apart. This rock bucket and land plane attachment helps expand the capability of the John Deere subcompact tractors and is a must have attachment for contractors, landscapers and the hobby farmer.
Rock Bucket and Land Plane Specifications:
- Width: 54″
- Height: 16″
- Depth: 25″
- Weight: 375 lbs.
- Material: Made from 1/4″ A36 steel plate
- Tine Spacing: 3″
- Cutting Edges: 1/2″ x 4″ single bevel 1055 carbon steel
- Compatible with John Deere’s proprietary quicktach system
- Powder coated John Deere Green finish
- Always Made in the USA
Compatible Models (call to verify):
- John Deere 1023E Rock Bucket and Land Plane
- John Deere 1025R Rock Bucket and Land Plane
- John Deere 1025R TLB Rock Bucket and Land Plane
- John Deere 1026R Rock Bucket and Land Plane
- John Deere 2025R Rock Bucket and Land Plane
- John Deere 2032R Rock Bucket and Land Plane
- John Deere 2038R Rock Bucket and Land Plane
- John Deere 3025D Rock Bucket and Land Plane
- John Deere 3035D Rock Bucket and Land Plane
- John Deere 3043D Rock Bucket and Land Plane
- John Deere 3025E Rock Bucket and Land Plane
- John Deere 3032E Rock Bucket and Land Plane
- John Deere 3033 Rock Bucket and Land Plane
- John Deere 3038E Rock Bucket and Land Plane
- John Deere 3033R Rock Bucket and Land Plane
- John Deere 3039R Rock Bucket and Land Plane
- John Deere 3046R Rock Bucket and Land Plane
- John Deere 4105 Rock Bucket and Land Plane
- John Deere 4044M Rock Bucket and Land Plane
- John Deere 4044R Rock Bucket and Land Plane
- John Deere 4052R Rock Bucket and Land Plane
- John Deere 4052M Heavy Duty Rock Bucket and Land Plane
- John Deere 4066R Rock Bucket and Land Plane
- John Deere 4066M Heavy Duty Rock Bucket and Land Plane
- John Deere 1 series attachments
- John Deere 2 series attachments
- John Deere 3 series attachments
- John Deere 4 series attachments
Occasionally, this product may be called:
John Deere Subcompact Tractor Rock Bucket and Land Plane, John Deere Compact Tractor Rock Bucket and Land Plane, Land Plane Attachment for compact tractors, Land Plane Attachment for subcompact tractors, Compact Utility Tractor Rock Bucket and Land Plane or Utility Tractor Rock Bucket and Land Plane for John Deere tractor.
Evan Jones (verified owner) –
Great product, great service. Had a couple questions and spoke with the owner. Quick and easy shipping, and the bucket works very well. Thrilled to find Redline !
Mark Diener (verified owner) –
High quality for the price. Great service and fast shipping
Kenneth Johnson (verified owner) –
Very well made stands up to a lot abuse abuse it to lift rocks heavy heavy rocks overall a very good investment
Brian Rendel (verified owner) –
Only used a few times so far. I like the bucket depth (deep horizontal surface area) that allows the bucket to serve better than the standard bucket as a carryall for items like trash cans. I haven’t yet quite figured out how to make this work very well as a leveling / land-leveler type tool (my box blade is better for that) but I have a lot of rocks here and the bucket functions about as well as may be expected to extract large cobblestones from garden plots. Rock-filled soil does take a little encouraging (quick dump and scoop bucket moving) to separate soil from the stone (which would probably be the case with any rock bucket). My only real complaint is the bucket’s quick-attach fit to my Deere 120 loader is a little off so I need to persuade the bucket every time I attach it using forward-down pressure to attach to my loader.
Steve Cole (verified owner) –
Well made product, works as expected (very well) the land plane is different as you use it going backwards with the down pressure of the bucket.. great product and fast delivery. Could not make it for what they charge..
Paul (verified owner) –
Great experience the whole process purchasing this product! Waited on reviewing till I used it a few times and each time I am more impressed. I used it with my John Deere 1025R to smooth out some topsoil in quite a few spots in the yard. Even with the topsoil being a bit wet from recent rain the land plane backwards broke up the clumps and spread it out so nice. Also the edge on the back of the bucket is very useful for pushing piles forward while leveling. A different time I used it as a true rock bucket and was digging into piles of dirt and rock to move the rock to a different location and the bucket performed very well. Originally I wasn’t sure about getting this one compared to the one with the teeth and I can say I have not had any problems using it as a rock bucket and the land plane is an awesome bonus!
Randall Jacobson (verified owner) –
I use this on my JD 1025R. It aligned perfectly on the hook and pin JD mount. Very sturdily built. It works as described. It made quick work of getting rid of the winter ruts in the gravel driveway and makes picking rocks kind of fun!
Bonus for me is that I was able to buy local, pick it up myself and meet the owner of a high quality local business. Thanks!
Jeremy (verified owner) –
We bought property to clear and build on and as I ran my dozer I found it to be a lot of rock. This bucket on my 1023e has been a blessing! I’m able to separate almost all the rock from the dirt that’s been bull dozed. I have hit some monster rocks and have had zero problems! Build quality is top notch. Out of all my attachments this has been my favorite!
Brad Chapman (verified owner) –
Received my rock bucket for my JD 2032r in 2 days just as promised. Very high quality and good craftsmanship. Have used it for approximately 10 hours sorting out rock and grading thus far. I would definitely buy from Redline again.
