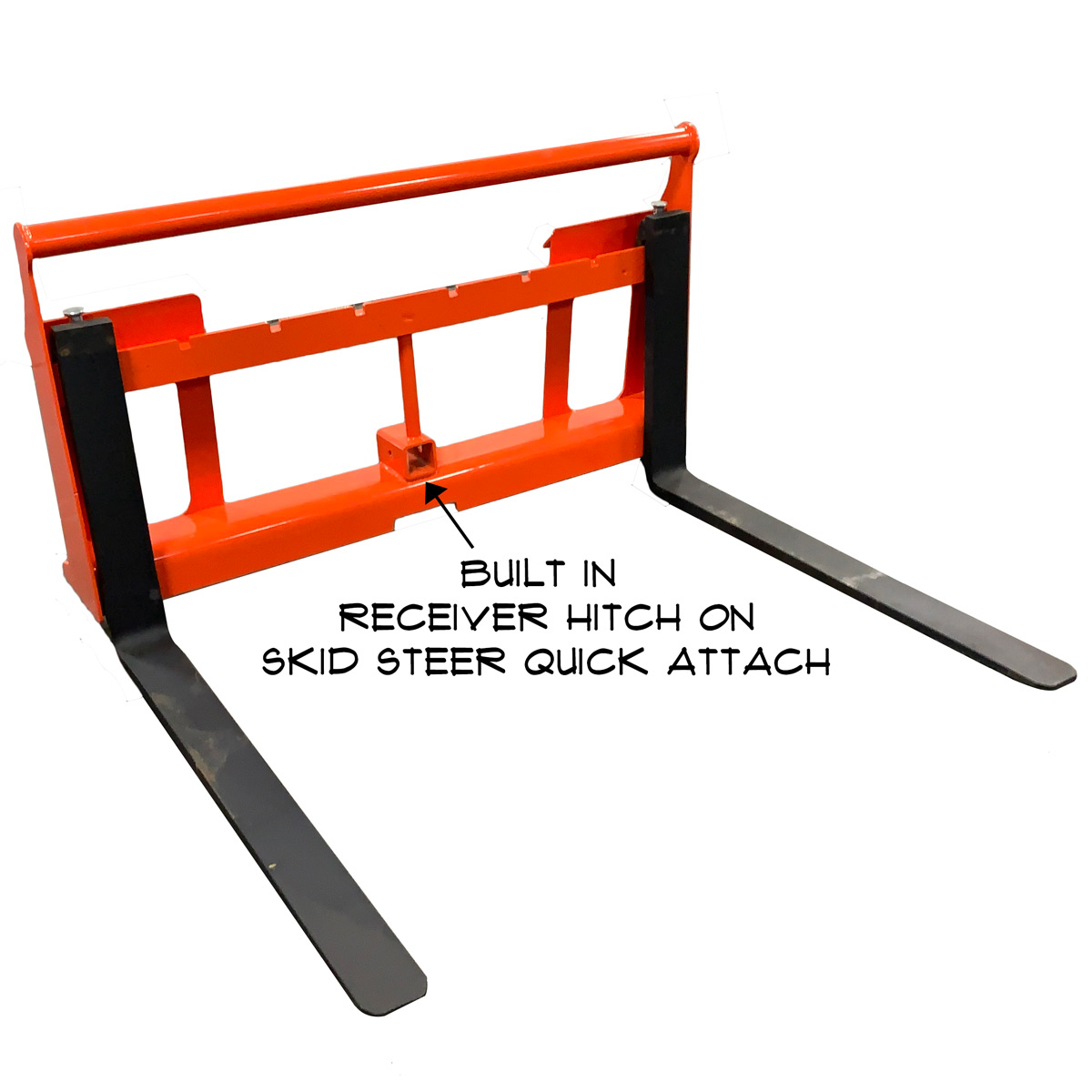

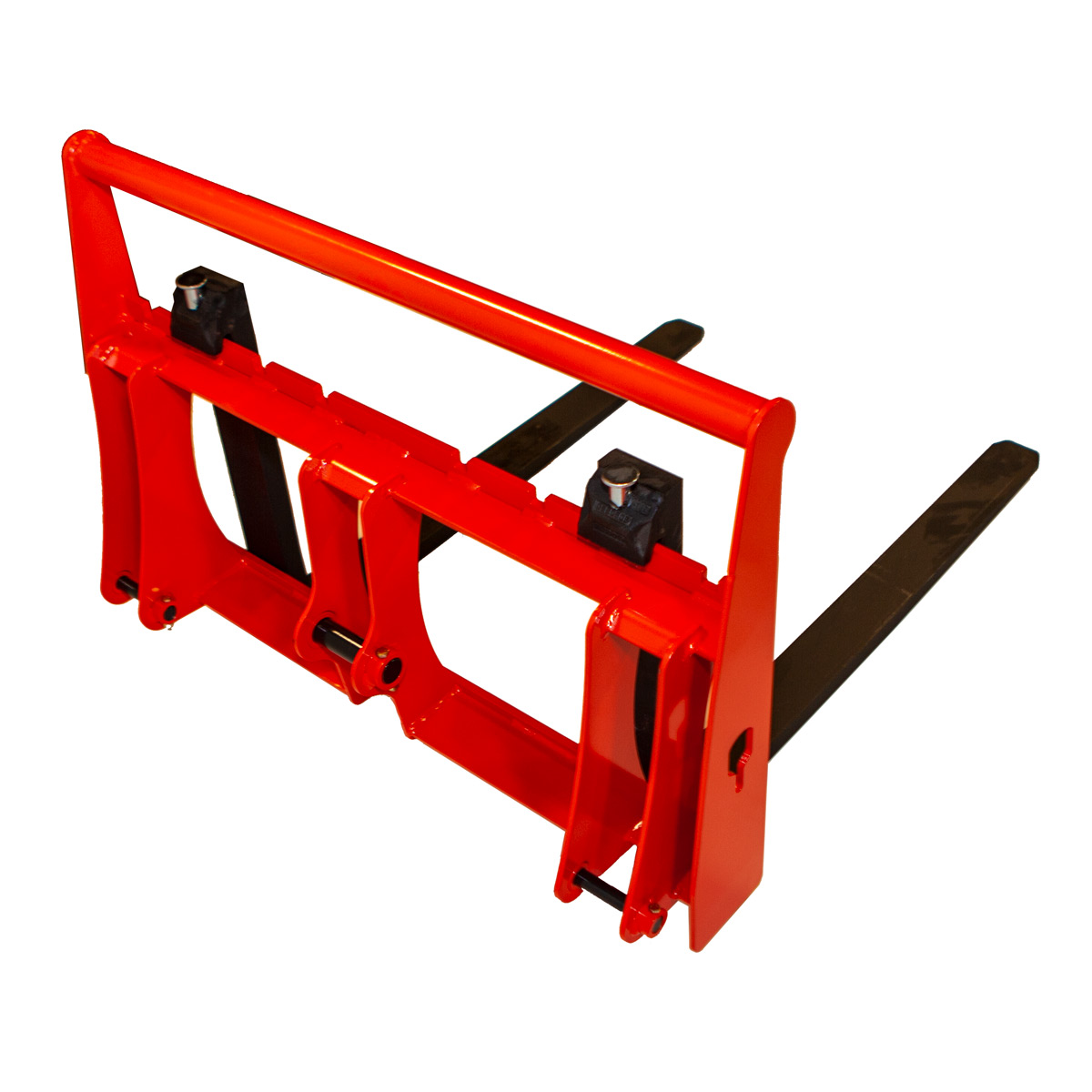

Here is a short video about the Pin On receiver hitch.

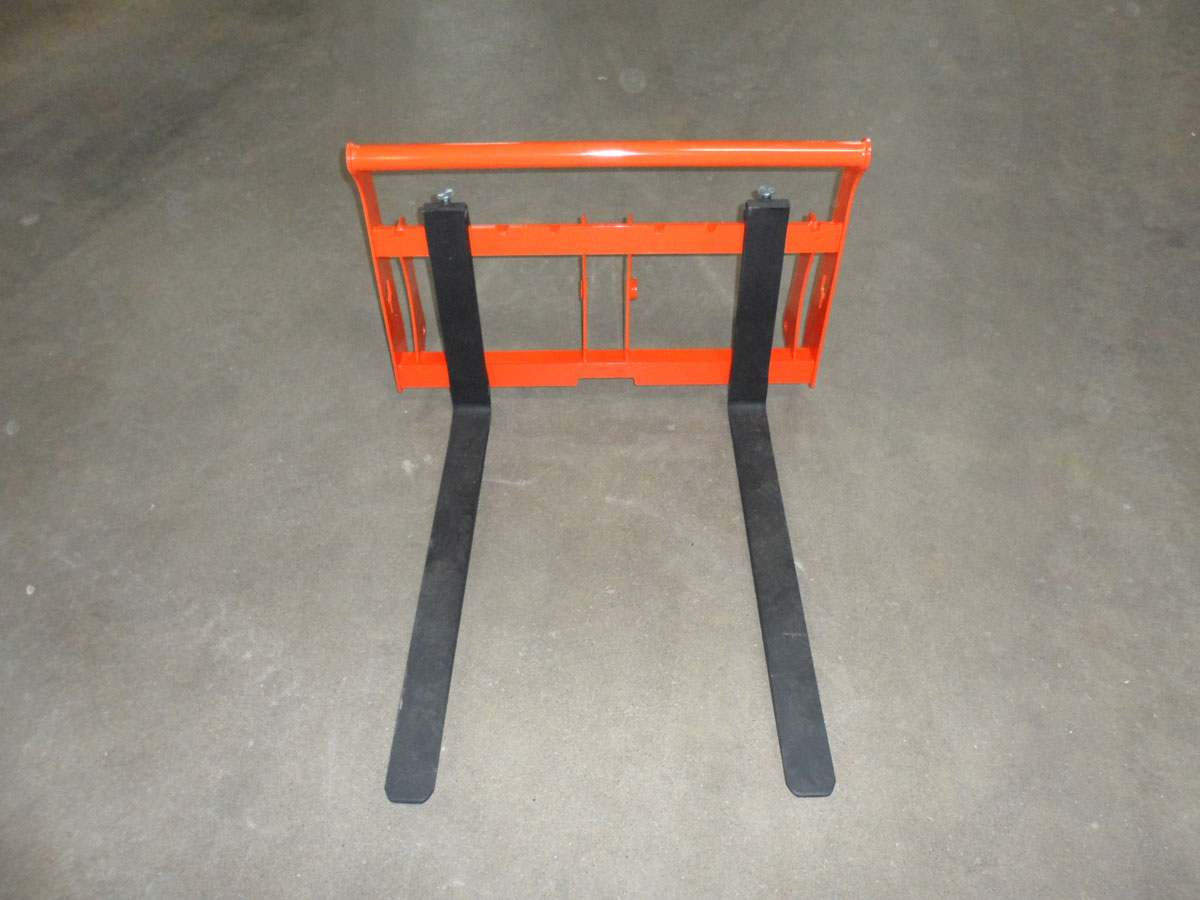

The Redline Systems Inc. Kubota BX pallet forks were designed specifically for use and capacity of the BX tractor. Being these tractors have such limited lift capacity everything you put in front of it has to kept light yet durable enough to handle the abuse these tractors can take.
Summary

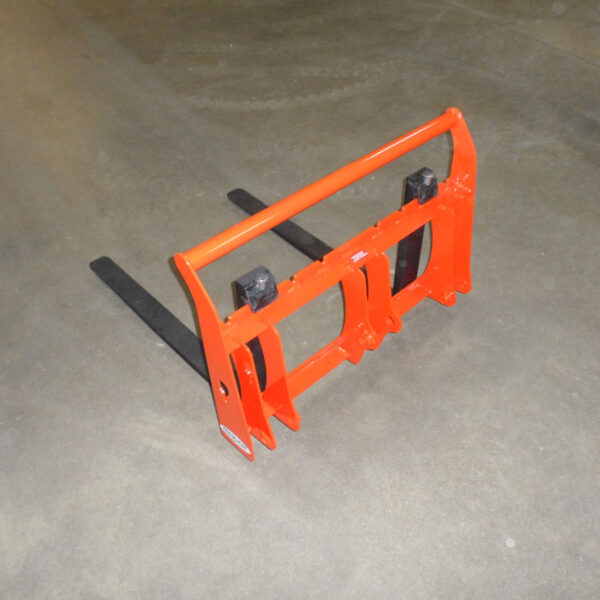

The carriage is constructed of all 1/4″ A36 steel plate. The mounts are also 1/4″ plate and are tied in with a torque tube at the top of the carriage to help minimize the twisting effect inherent with the center rollback cylinder design. There is also tie off point cut into the side rail of the carriage to help hold something on the forks or assist in tying the tractor down on a trailer. And an 8″ tall back stop integrated into the carriage.
About the forks
Choose from 36″ or 42″ forks. Heavy duty 3/8″ forks rails that won’t bend. They are built to be durable and lightweight to handle the lift capacity of the BX tractors, which ever one you may have. They are a center load design so they can’t fall off the end of the rail and are adjustable in width along the rail.
Why are these better than clip on forks?
These are a much better option for people that want to use their tractor for moving palletized material around or picking up logs. The clip on bucket forks work for some people but eventually end up bending and distorting the factory dirt bucket and the lift capacity is very minimal due to where the bulk of the weight is positioned in front of the bucket. This pallet fork attachment for Kubota BX tractors has been to designed to maximize the lift capacity the tractor has and will keep the weight as close to the loader pivot points as possible for maximum lifting force.
This is a must have attachment for the BX user and will end up on the tractor more than any other attachment in most cases.
Pallet Forks Specifications:

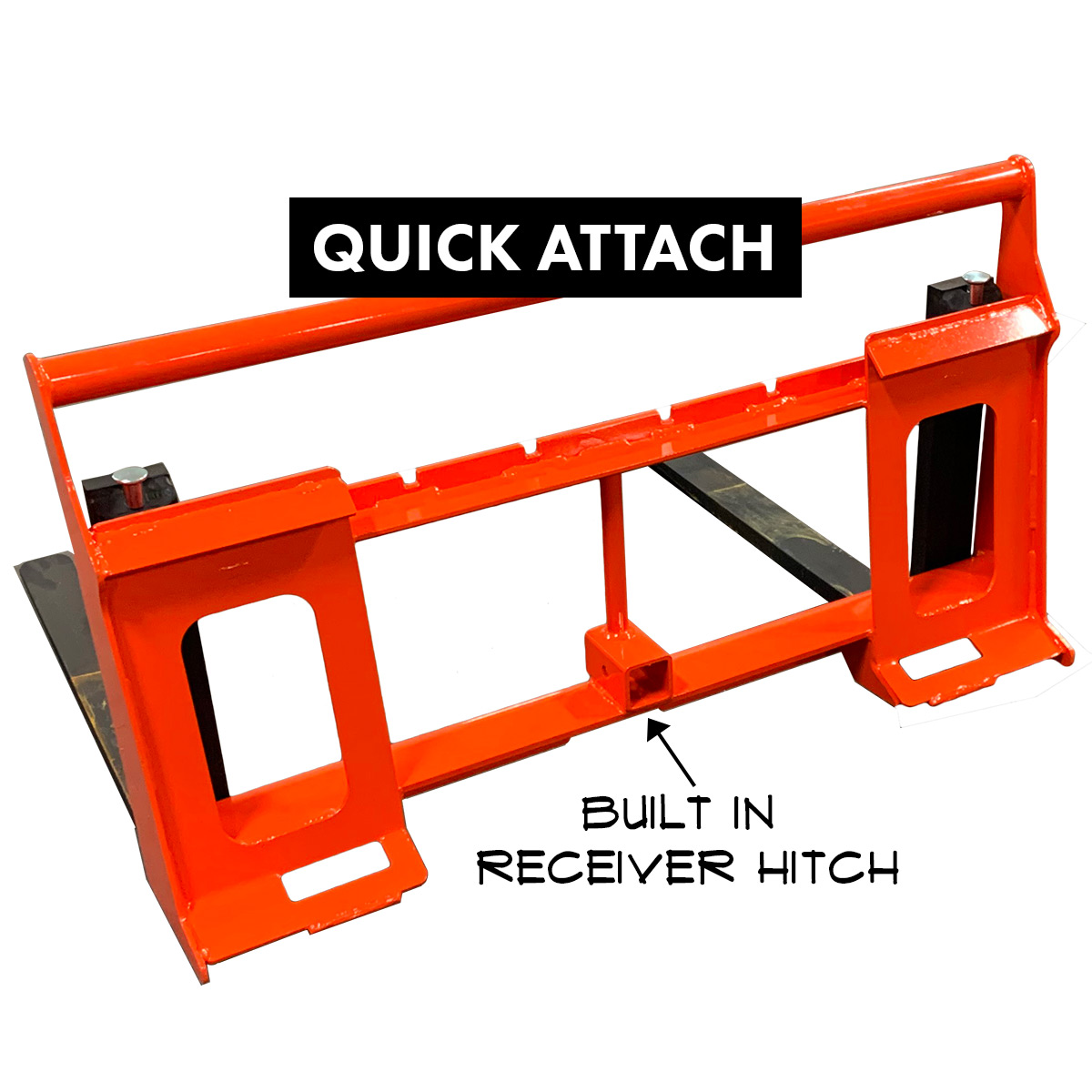

- Mounting Type: Pin On or Quick Attach
- Fork Length: 36″ or 42″
- Carriage Width: Pin On-36″, Quicktach-45″
- Height: 24″
- Depth: 9″ without forks
- Weight: SSQA 36″ forks and carriage 177 lbs, SSQA 42″ forks and carriage 223 lbs, pin-on 36″ forks and carriage 162 lbs, pin-on 42″ forks and carriage 208 lbs
- Frame Material: Frame made from 1/4″ A36 plate
- Fork Dimensions: 1.125″ x 3″ x 36″ or 42″
- Fork Width: Adjustable
- Lightweight design maximizing lift capacity
- Rated for up to 2200 lift capacity (depending on model of loader)
- Integrated tie off point inside rail
- Compatible with Kubota BX 6315 factory quick tach
- Can be mounted directly to loader if desired (no quick tach required)
- Powder coated Kubota color finish
- Always Made in the USA
Compatible Models (call to verify):
- Kubota BX1880 Pallet Forks
- Kubota BX2380 Pallet Forks
- Kubota BX2680 Pallet Forks
- Kubota BX23S Pallet Forks
- Kubota BX1500 Pallet Forks
- Kubota BX1800 Pallet Forks
- Kubota BX1830 Pallet Forks
- Kubota BX1850 Pallet Forks
- Kubota BX1860 Pallet Forks
- Kubota BX1870 Pallet Forks
- Kubota BX2200 Pallet Forks
- Kubota BX2230 Pallet Forks
- Kubota BX23 Pallet Forks
- Kubota BX2350 Pallet Forks
- Kubota BX2360 Pallet Forks
- Kubota BX2370 Pallet Forks
- Kubota BX24 Pallet Forks
- Kubota BX25 Pallet Forks
- Kubota BX25D Pallet Forks
- Kubota BX2660 Pallet Forks
- Kubota BX2670 Pallet Forks
Billy Williford (verified owner) –
It worked just as advertised, it is well built and does exactly what I needed it to. We were picking up a 500 pound load regularly with forks that attach to the bucket and the loader barely picked it up. These forks were easy to install and brought the load close to the pivot point which now allows us to pick up 500 pounds easily.
Mike (verified owner) –
These pin on forks are just what I wanted. They went on easy and fit perfectly. They were about the same price as the Kubota clamp on bucket forks. They are built tough and are much better than clamp on ones. Thank you Redline you have a great product here.
Brad Yoder –
These forks will handle way more then the tractor and loader ever will. Good fit and finish. Customer service is excellent. I was able to pick it up at the shop since I was close for work. I would highly recommend these forks and a quick attach system for your kubota.
Sean (verified owner) –
Exactly what I needed. Works very well to move items around the yard. Strong, honestly much heavier built than what the tractor can lift. Works much better than bolt on forks. Shipping was quick and easy, I chose to pick this up at a nearby truck terminal.
michael (verified owner) –
I wish I bought these 5 years ago, after having them I don’t know how i made it without them. Built very well and will easily handle more weight than my BX25d can lift.
Wade McMillan (verified owner) –
Extremely happy with my purchase. Very well made yet light and will handle more than anything the bx can handle. Shipping was extremely fast had my forks within 5 days of ordering.
Dan Miller (verified owner) –
I wish I had bought these sooner. The bucket is good for moving dirt, mulch or snow, and these forks are great for moving everything else. The lift capacity is limited by the tractor, not the forks. Very fast shipping and excellent customer service.
Jason (verified owner) –
Great set of lightweight forks!!! Perfect for my BX23S
Scott (verified owner) –
I don’t know how I lived without these pallet forks. I have the smallest Kubota BX 1880. These are very lightweight, but rugged full function set of fork. Super easy to quick connect to the loader and easy to adjust the fork spacing. Very easy to maneuver with my tractor. I’ve already recommended them to several other folks. Most impressive was the personalized customer service. They contacted me, they inspected it before shipping and even touched up some of the Kubota orange paint before they shipped to a drop terminal near my house.
Keith Nesbitt (verified owner) –
Purchased for Kubota 2380 with SSQT. finally got some time to use it and is exactly as I had hoped. Good quality, tough and light weight. Great to see an affordable option compared to others for the same functionality
Chris McAuley –
Shipping was very fast. Great attachment for my tractor, should have bought one sooner.
John m cradure –
The interaction with Redline, the delivery time, the actual forks, everything was great. Love the bright orange color and well built forks.
Bryce Mobley –
Purchased for my Kubota 2680 with the quick attach. Perfect fit. Good quality, tough and light weight. Even being as busy as he is Matt took the time to answer my questions via phone. No hoops to jump through he just answered the phone. What a concept!
Bryce Mobley –
Kubota 2680 sub compact with the quick attach. Perfect fit! Even being as busy as he is Matt took the time to answer my questions via phone. No hoops to jump through he just answered the phone. What a concept!
I’ve used the pallet forks a few times now and I’m impressed with the quality and ease of use.
Ryan (verified owner) –
I purchased the SSQA (Quick Attach) version with 36″ forks for my Kubota BX23S. I did a ton of research on for pallet forks. I am confident that these are, without a doubt, the best available. They are super light weight, excellent build quality, built-in receiver hitch, and a good price. Nothing else compares. Being able to lift up the light weight pallet fork frame by hand and move it around is super convenient for storage. If you are looking for Kubota BX pallet forks, STOP LOOKING and order these!
Roger (verified owner) –
I was looking for some light weight forks for my Massey Ferguson GC1710 subcompact. I looked for quite awhile before I settled on these. I purchased the SSQA style for my tractor. The whole experience was excellent. Matt was helpful when ordering and after the shipment. The forks were the perfect size for my tractor. They aren’t just for Kubota’s. I would purchase from Redline again…
Paul W. (verified owner) –
This was the second attachment that I bought from Redline and like the first attachment (rock bucket) it was shipped and received quickly. The Pallet Forks were quickly put to use and I can say that I am extremely happy with the purchase of this attachment for my Kubota tractor, just as I was with my first attachment. The added ability to attach a ball hitch is just another plus for this attachment. The forks are extremely heavy duty, yet easy to adjust for different pallet widths. Congratulations Matt on another quality attachment, I couldn’t be more pleased. Highly recommended.
Ronnie Duff (verified owner) –
Very well built pallet forks. Exactly what you need for a subcompact tractor. I got mine for a bx2380, and works very well. Light, yet well built for whatever you need.
D. Martin (verified owner) –
36” pin on pallet forks for Kubota BX2670. Glad it was in stock and available. Was well constructed, but needed to make a small grinding adjustment to fit the center cylinder properly. The provided cylinder center pin was too big after being powder coated by the manufacturer, so will machine down in the future. For now the Kubota bucket pin works fine. Delivery was excellent.
Marc Cammack (verified owner) –
Pallet forks greatly increase the utility of any tractor. I use them 10x as much as the bucket. Redline pallet forks are well engineered, well made, and lightweight. The design puts the weight of the forks near the loader frame, increasing the lift capacity. These forks will handle more than the tractor can lift ( BX 2680). Customer service is top notch. Highly recommended, well worth the money.
Superior to anything else available.
Joseph Ortland (verified owner) –
First I would like to say Matt was very pleasant to speak with, and was very helpful. I have a BX23S with SSQA and these fork fit perfect. They are well-built, they look good, and lighter in weight, which makes them perfect for a sub compact tractor. Plus shipping cost was very reasonable. If your looking for a set forks I highly recommend these.
Jay Premo (verified owner) –
I bought the BX pallet fork, SSQA version. I am impressed by the quality of the product and the speed of delivery after I ordered it. I have found this very helpful for the type of work I plan on using it for. I am using this on a Kubota BX2380.
Steve T (verified owner) –
Very nice set of forks. Well built and nice finish.
Greg Parson (verified owner) –
I was looking for pallet forks that didn’t weigh a lot to replace the BXpanded pallet forks I had. The BXpanded were fine but were severely limited in what they could pick up because of how far out in front of the tractor they were. I found these via an online search and had some questions about availability and shipping so I reached out to Matt. He called back promptly and answered my questions and we selected a FedEx freight center for delivery. I ordered the forks on a Saturday and Matt emailed me right away saying they would ship out on Monday. To my surprise they arrived at the FedEx location on Wednesday. They are very high quality and are much improved over the previous setup I had. The whole experience at Redline systems was top notch; from the communication to the product itself. Highly recommend.
Tim Ridlon (verified owner) –
I have been looking for pallet forks for my Kubota BX2370 sub-compact tractor with the BX6315 quick attachment. I found these during an online search and had questions about fit, availability, and shipping so I contacted to Matt. He replied to my request for information very promptly, providing the requested information. Ordered the pallet forks on a Friday and they shipped the following Tuesday arriving at the FedEx terminal on Thursday. Working with Matt and purchasing online was a positive experience. I like the high quality of the construction. The entire exercise in the purchase from Redline Systems has been great. I highly recommend the firm and will utilize them for any future attachment purchases.
Jake Massop –
Do your research and you will know these are the pallet forks to buy for your subcompact tractor. Light weight yet strong and durable; hitch receiver is also a huge bonus. Customer service provided by Matt is top notch.
Mike S (verified owner) –
Perfect set if forks, exact fit for the quick attach. High quality, well built, fast shipping. What else can I say, easy transaction. Thanks alot we will order other equipment if needed.
Ted F Jennejohn (verified owner) –
These forks are a great value, they are commercial grade. I did have an issue with the pin alignment being slightly off when I first tried to mount them, but I called and spoke directly with the owner who offered to make me whole before I even asked him to. I can tell he takes pride in the products his company offers, and he should, this is top quality equipment at a very fair price. PS – Do not waste your money on forks that clamp on your bucket, put that $ toward a set of these.
Mobius (verified owner) –
Very sturdy pallet forks and well made; easy off to use 2″ receiver hitch; will come in handy when I need to move my log splitter or tilt trailer around the yard; good job.
Danny Poling (verified owner) –
Very Happy
Dana (verified owner) –
Excellent set of pallet forks for the BX, great customer service and prompt delivery. I have a BX23s with a pin on bucket and the one issue I had was that the the forks have a collar on the pin hole/slot such that the bucket pin on one side is not long enough to support the kick stand with the pallet forks on. It’s fine on one side but not the other. I tried a few fixes to hold the one side of the kickstand and the eventual fix was a long bolt (don’t remember now but something like 7/8 x 6 or 6.5”) from tractor supply. I had to grind down the end of the bolt to the 1/2 inch diameter of the kick stand and add a hole for a spring clip to keep the kickstand in place.
Julia (verified owner) –
I love everything about these 42” forks. The manufacturing is excellent: smooth welds and no rough spots, solid paint job. I use them on my BX23 to move water to livestock pastures. I have a pallet that holds six 5 gallon buckets that I fill at the house, and then I drive and drop off to each location. I also pick up a 100 gallon Rubbermaid stock tank on the forks and drive around picking up sticks and rocks — a constant crop in New England — and then I dump the tank onto my burn pile or rock pile. They work great to pick up piles of brush, too. It’s easy to adjust the forks, too. The customer service was excellent — they arrived exactly when promised. I couldn’t be happier.
Steve W (verified owner) –
The forks work great on my BX25D. Everything is well designed and solidly built. Communication from Matt was good and shipment was quick.
don willet (verified owner) –
What can I say……great product, great service!
Chad Stone (verified owner) –
Very well made. They work really well with my bx. And very fast response time from matt. I highly recommend!
Ed Simons (verified owner) –
I ordered the Kubota BX Tractor Pallet Forks for my BX23S, and couldn’t be happier overall with the forks. Outstanding, quality product through and through. Also one of the attachments that I use the most.
BE AWARE though, that If you have a BX series with the quick attach frame on the front of the loader, a standard ball mount may not slide far enough into the receiver to pin into place. IE the holes won’t line up for the pin. This is due to the middle u-shaped part of the frame being too close to the back of the receiver once the attachment is mounted into place. Basically, where the curved portion butts up against the receiver that is welded onto this attachment once it’s locked onto the loader. It will take some modifications, such as shortening a standard ball mount or hitch by at least as much as a 1/2″ so that it can slide in far enough for the holes to line up for the pin to secure it to the attachment. Not a big deal.
I was really impressed with Matt’s timely response to this issue, and offer to do what it takes to help me find a solution that would work, such as shortening the hitch, etc. Customer service was so top-notch, that I agreed to just take care of it myself. But if towing is important to you, you might want to reach out to Matt’s team first to see what he’s come up with for this if anything yet.
Can’t say enough great things about this company and its products! Hope that helps!
Gary Mueller (verified owner) –
Redline Systems, Inc. fork lifts are fabulous. They are very easy to put on and remove with the quick attach frame. I recently had a large tree cut down. The forks were great at moving large cut up tree trunks. When it came time to gather all the other branches in a pile the forks worked great. Simply tilted then forks and gathered them in a very large pile. I have not tried the receiver hitch on a trailer, but I am sure it will work great. I strongly recommend you these a try. You won’t regret it. Note: They also arrived early. Great Job from all the people at Redline Systems, Inc.
Alex M (verified owner) –
First off, working with Matt and Redline System has been a pleasure, with great communication and quick delivery.
I have heard the Kubota BX tractor called the “force multiplier” and the Redline Pallet Forks with the trailer receiver just adds to this. A lot of what I use my tractor for is movement of equipment, parts, materials, and anything else too heavy to lift. Now, if it can fit on a palette, I can easily move it.
Other things I move around frequently are trailers, the boat, and a log splitter. I used to have to fire up my truck, slowly back up into tight spots to load the trailer, and then inch out, trying not to catch anything. Most of the time alone, and/or at night. The Redline System Pallet Fork with Receiver makes this much easier, safer, and faster as the trailer leakage is right in front in clear sight. I can use the Kubota headlights to light things up at night for perfect trailer pickups, movement, and placements every time. Moving a trailer like this adds maneuverability, safety, and speed around the yard.
I’ve found another use for the pallet forks while excavating and/or digging with my Kubota BS23S, when you need extra leverage (digging up stumps, pulling up rocks). Basically I dive the forks into the ground about a foot and position the front tires just off the ground. This really anchors the front end of the tractor do
Adam Fike (verified owner) –
Very high quality forks worked perfectly on my bx kubota tractor I highly recommend redline systems for all your attachment need.
Jack Griffin (verified owner) –
I have a Kubota BX 23S Tractor and bought the 42” skid steer quick attach from Redlines. It fits perfectly! I spoke to Matt and he was very nice. Exceeded my expectations. Very happy with my purchase! Thank you, Matt.
Max McFarland (verified owner) –
They are very well made and are working great. I used the built-in receiver hitch to move a trailer in an awkward spot the other day. A nice added benefit. These are so much better than the bolt on bucket forks. I wish I had bought these first instead.
Danny Poling (verified owner) –
The are the Best.
Bruce Alexander (verified owner) –
I purchased a set of SSQT forks for my Kubota BX23S. Once the order was placed the forks were shipped in a timely manner. There was an issue with the way they fit the tractor and I reached out to Matt via Email for a solution to the problem. Matt chose to call verses trying to resolve the problem with Emails. Matt handle the issue in a professional manor and very understanding with my concerns. I would highly recommend this product to anyone needing forks for there tractor. My forks are on the tractor more than the bucket. These are a big asset to the tractor.
Thank you Matt for all your help.
Daniel –
Very well built. Does the job with no surprises. The built in hitch receiver is a welcome feature.
Doug Barrows (verified owner) –
Super happy with these. They are mounted to my LX3310. The buying process was fantastic and they shipped FAST.
DBURY (verified owner) –
After lots of research I purchased these forks for my Kubota BX SCUT. These were the lightest set I could find, in order to maximize my lifting capability.
Aaron –
Great build quality, very light. They work great for me on my BX23S.
Jacob Nielsen (verified owner) –
So far they have done everything we needed them to. They are easy to take on and off our B26 and make a nice addition to just having a bucket. I would recommend them to anyone looking for forks.
Matt (verified owner) –
The Pallet Forks are made super nice and are feather light. Great addition to my BX attachments and probably my favorite.
Alex (verified owner) –
Fits great and appears made to last a lifetime. Nice product.
Vince Gajewski (verified owner) –
After researching pallet forks for my Kubota BX2370 and speaking to Matt about my plans to use them, i purchased the pin on pallet forks with the 36 in forks with the reciever. The quality was excellent and looks like they can handle anything the BX could lift. The option of the reciever was a deal sealer for me since other companies did not have which would have been an additional purchase. I like to purchase a product that is as usable as possible. Forks, trailer mover and may use with an add a grapple. Shipping was quick 3 days from factory to Central Pennsylvania.
Tony Kleiber (verified owner) –
I’m quite impressed with the quality of these pallet forks,they are well constructed and work real well.I’ve always been afraid the clamp on the bucket forks would distort the bottom edge of the bucket so they were not an option for me.Would reccommend these forks to anyone!
Ben Bahr (verified owner) –
These quick attach pallet forks are perfect for my BX2380. They move easily to new positions, are removable in a few seconds from frame or tractor, and are as light as possible without sacrificing strength, giving me much more lift capacity than clamp-on forks. I love the hitch receiver built in to the middle; now I can move trailers around without getting out of my seat. Matt was great with communication and contacted me personally. If you have 15 different browser tabs open right now trying to decide which pallet forks to buy, like I did… these are the ones you want. No regrets.
D. Graham (verified owner) –
By far the best fork attachment for my bx25d, i got the direct bolt on and there on more than my bucket. The tow hitch is very handy and quick disconnect. The whole transaction went smoothly and the shipping.
D. Hermesch (verified owner) –
Great set of forks and good company to work with. I’m very satisfied with my purchase and have used them as much or more then I thought I would.
Michael Walter (verified owner) –
I love my Kubota BX pallet forks. I installed them on my Kioti CS 2210 after converting my bucket from the pin on style to the skid steer quick attach and everything fits perfect. If I had one thing I would change it would be a way to clamp the bottom of the forks square maybe with a clamp like the top has or a set screw to take some of the slop out and hold straight but it’s not a big deal and maybe it’s by design. It sure beats my clamp on bucket forks hands down! Great product and fast delivery.
Mark / Delores Houser (verified owner) –
High quality, quick delivery, and excellent communication & customer service!
Mark (verified owner) –
Purchased for my subcompact Kubota
Well built. Forks remove easily. I use it often to move around trailers. Forks work great moving around logs. Scraping steel moving pallets of mulch & everything in between. Definitely a back saving tool.
Rick MacInnes (verified owner) –
Great product. Well built, sturdy, and easy to hook on/off. Although the forks are perfect for many jobs, the part I find most useful is the detachable receiver that I use to move my trailers around. MUCH easier than hooking up the truck each time.
KELLY HERSEL – Valley Tractor –
Been dealing with Matt for a few years now. Always high quality build and great customer service. Only had 1 thing wrong in 3 years, called Matt and he was on it, made it right in 2 days.
Thanks Matt for your great product and service
Harry Cibak (verified owner) –
I’m using the pallet fork on my BX2680. As others have noted these are well made and quite strong.
The forks adjust easily for lifting different loads. The quick attach feature of the forks works perfectly on the tractor.
Matt is very responsive and helpful in addressing questions. Excellent pallet, fair price and great customer service!
Absolutely cannot ask for anything else!
Michael L (verified owner) –
Learn from my mistake. Order these pallet forks for your subcompact tractor. I have a BX23s and made the mistake of ordering the cheapest, Titan, economy pallet forks. They are HEAVY, and it severely limited the capabilities of my super great little tractor. Having now received these pallet forks from Redline, I can confidently say it is worth every penny and than some. They are much better built than the aforementioned company, and they are performance matched for my tractor. It’s really night and day what I’m able to accomplish now that I have these.
What’s more, Matt and Redline provide impeccable customer service, something that is severely lacking in today’s day and age. I could not feel more taken care of or that I was an important customer to this business.
Great product, stellar company. Support them, you will not feel any regrets whatsoever.
George R. Kahn (verified owner) –
Redline was MORE than a pleasure to deal with; shipped unbelievably quickly; received without even a minuscule scratch :); went on hitch without a hitch; forks themselves are awesomely strong and well built; one of the best purchases I have made for my Kubota BX25D with pin-on hitch!!!
Matt Montoya (verified owner) –
The pallet forks work great easy to install and to remove great price and shipping thanks matt you made all of my items easy to order will buy more when i need more
Shane G (verified owner) –
Very helpful, and knowledgeable, answered all of my questions respectfully, and had the Kubota BX forks ready and waiting for local pick-up. Helped load them in my truck and even gave me free hat. Wear it proudly! Thanks Redline! Great product, well designed. Highly recommend. Only thing I would different is get the 36″ vs the 42″. The longer 42″ forks limit dumping height of brush onto a pile.
Kevin G (verified owner) –
Redline was great to deal with, and answered any questions I had. The pallet forks c/w detachable receiver make moving anything around a lot easier. The welds and painting were top notch. Package arrived on a pallet and shrink wrapped, so no damage at all. If you’re considering a set of pallet forks, these are the ones to get.
Harry Cibak (verified owner) –
Purchased the pallet forks for my Kubota BX2680 tractor, and I’m very pleased with this product.
It is well made, extremely strong and versatile to use. The skid steer attachment fits exactly. Quick fork adjustments as may be required for varying loads are easily accomplished and secure as set. I compared Redline’s forks to several others manufactured for Kubota tractors. With consideration to design, weight, quality and price, I am confident I purchased the best……I would confidently recommend these pallet forks.
Charles Akerberg (verified owner) –
Excellent accessory for a BX!
Daniel (verified owner) –
I got the 42″ quick attach forks and just like the Redline rock bucket, I should have bought them years ago. I’ve had the forks for about 6 months now my only regret is not getting them sooner. The design and build quality is top notch, not so heavy duty that my Kioti CK2610 loses lift capacity, but heavy duty enough that the forks can handle more than the tractor can lift. A perfect balance really. Fork width adjustment is great, not too loose to be sloppy and not too tight to be difficult. Forks are quick and easy to remove when you want to use the 2″ hitch. Moving a trailer with the tractor is so much easier than the truck, from hookup to fitting the trailer in tight spots.
Neil M. (verified owner) –
A very easy company to deal with. Matt made sure that I was getting the correct part for my BX25. Shipping was timely and easy to track. When it arrived, the overall construction looked excellent. It fit correctly and expands the uses of my tractor.
Kenneth Leake (verified owner) –
These forks are lightweight, yet strong enough to handle anything I am going to throw at them. I have moved around quite a bit of material and used for tree branches and such as well. The only improvement would be maybe some chain notches or hooks built in to tie things in place. This is minor because there are places to hook straps or wrap chains, but built in hooks would be more convenient.
mitch nn possible (verified owner) –
2nd favorite attachment for this tractor ( 1st place goes to the shade canopy 😉 .
Set of forks turn this little BX into a Bad Xss! , great add for this machine.
Excellent quality; thick plates, great welds & very nice paint, fit the loader arm pin mounts very well.
Same goes for the tow receivers – very tough stuff.
Plus a Seller who is truly interested in customer satisfaction.
Dont forget to tie loads down to pallet / forks somehow, Its hard to keep it level . nuff said
